🔋 Connecting a UPS Battery to Your Hub.

If you’ve purchased additional run time for your Hub with extra UPS battery packs — great choice! 👌

The battery pack will generally provide up to 12 additional hours of run time, depending on usage and conditions.

To ensure everything works correctly, please follow the setup steps below carefully.

🔌 What You’ll Need

  • 12V power supply
  • UPS battery pack
  • Link cable
  • Your Hub

🛠 Connection Steps

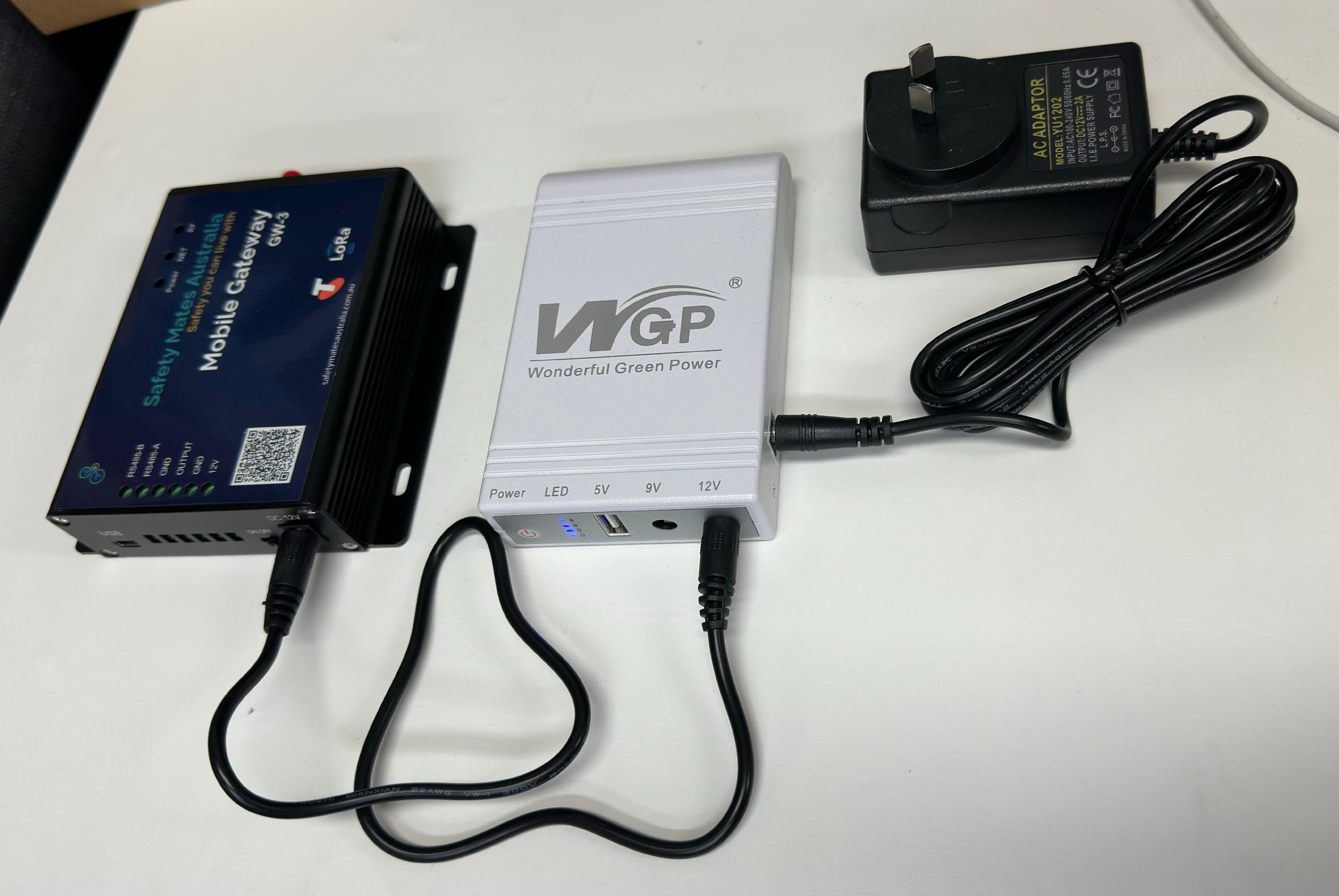

1️⃣ Connect the Power Supply to the Battery Pack

Plug the 12V power supply into the battery pack.

UPS Battery

2️⃣ Connect the Battery Pack to the Hub

Using the link cable:

  • Plug one end into the 12V socket on the battery pack
  • Plug the other end into the 12V DC IN port on the Hub

3️⃣ Power On the Battery Pack

Press the power button on the UPS battery pack once to turn it on.

Battery UPS

4️⃣ Power On the Hub (Last Step)

Once all cables are securely connected, turn on the Hub power switch.

⚠️ Always power on the Hub last after all connections have been completed.

💬 Need Help?

If you experience any issues with setup or power, our support team is here to help.

Please submit a support request via the Help Centre or reply to your existing support email and we’ll assist you as quickly as possible.
